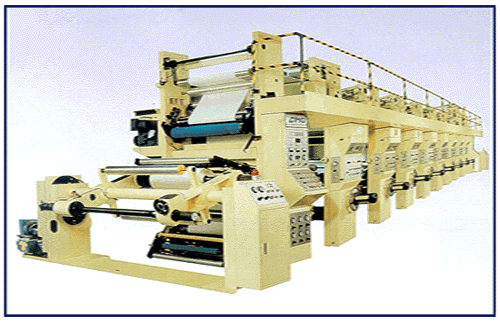

MODEL : DGA-OT SERIES
¡áSpecifications
  • Kinds of web : All Plastic film, Al-foil
  • Nos of color : 2-12 Color
  • Guide roll width : 1200mm~1800mm
  • Printing width : 1000mm~1600mm
  • Printing cylinder width : 700~1750(¡Ë130-300mm)
  • Printing speed : Max.200m/min
  • Un/rewinder type : 2Shafts turret type
  • Un/rewinder reel dia : Max.¡Ë600mm
  • Un/rewinder shaft : Air fix shaft
  • Drying system : Steam or Electric Heater
¡áCharacteristics
  • It is a full-automatic and high speed printing machine which enables
    for prompt replacement of printing cylinder by pneumatic shaftless
    locked device and is an advanced model which may maximize
    production by reduction of energy by adopting of dryer method with
    an improved jet nozzle type for high speed drive.
